Titanium

Ti
Particle size, bulk density and compaction of powders


Powder
titanium

The powder can be considered the most important base in the process of producing various titanium products. This is one of the main elements in the chain of creation of titanium products, on the structure, properties and characteristics of which the parameters of the products obtained largely depend. Titanium powders, regardless of their structural composition and production methods, have all the basic useful properties of this metal, including:

  • hardness
  • mechanical strength
  • porosity
  • plasticity
  • sintering and weldability
  • corrosion resistance
  • heat resistance
  • lightness
  • wear resistance
  • good compressibility indicators

Products are distinguished by weight, bulk density, sintering ability, chemical and granulometric composition, brand, and method of production.

Composite titanium powders, in addition to the basic properties of the main component (Ti), also acquire useful characteristics of the alloying elements included in their composition.

Titanium
grades

Grades Granulometric composition, mass%, by fractions, microns Bulk density, g/cm3 Compactness, g/cm3, at a pressure of MPa
+280 +100 +45(40) -45(40) 200 600
PTK ≤ 5,0 Balance (the rest) ≤ 10 0,89 2,70 3,50
PTS ≤ 1,0 Not defined ≥ 25 (35) Balance 1,15 2,60 3,24
PTM 0,0 ≤ 2,0 ≥ 15(25) Balance 1,02 2,44 3,35
PTOM 0,0 ≤ 1,0 ≤ 5,0 (5,0) Balance 1,36 2,72 3,48

Samples

Materials of our laboratory:

Tитан
Titanium

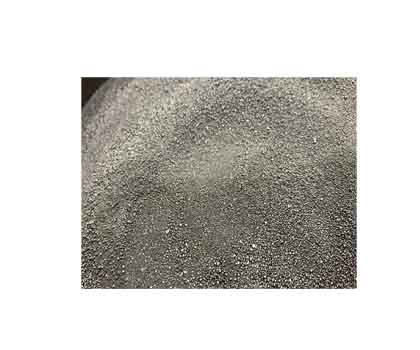

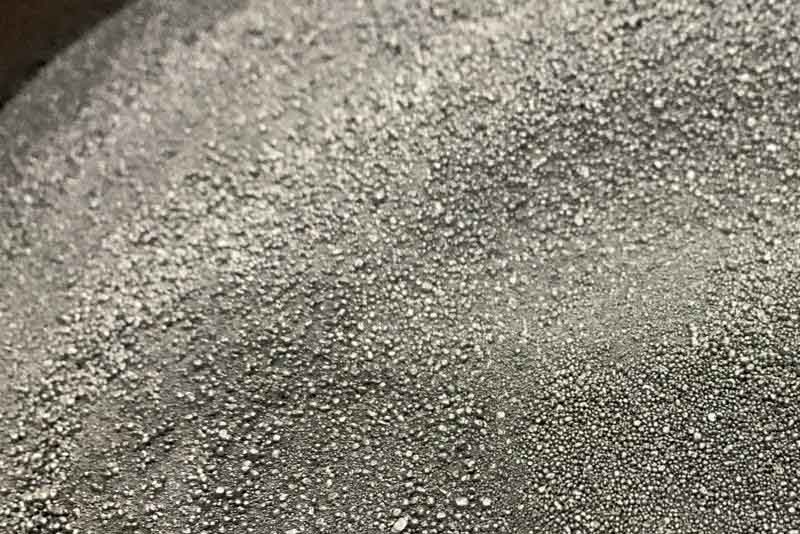

Powder titanium

Titanium powder, a semi-finished product, has mainly a rounded particle shape. The particle size ranges from 120 to 400 microns.
Titanium

Порошок титана после обработки, полупродукт

The initial titanium powder has a spongy shape. Its size is about 2 mm.
Titanium

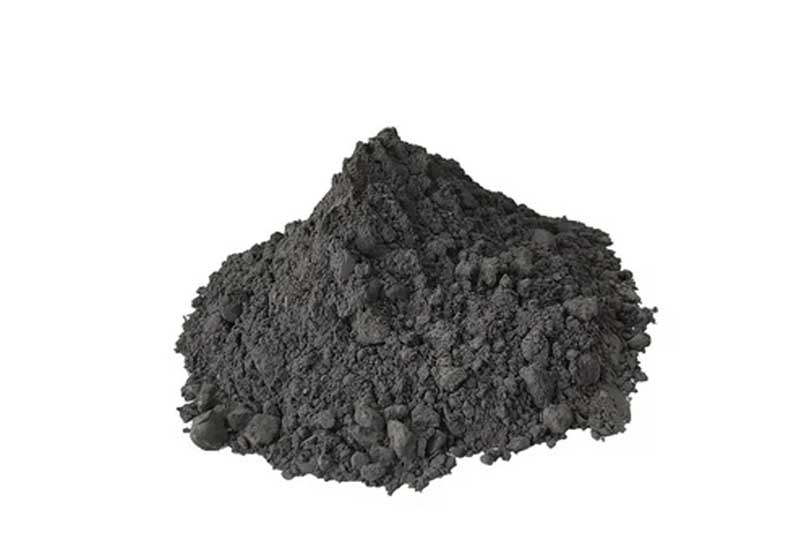

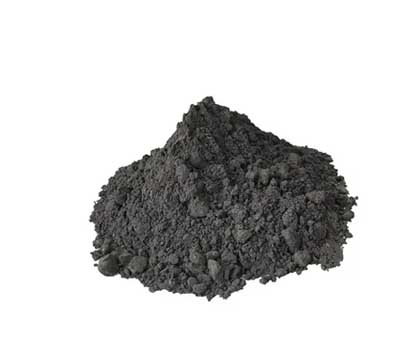

Titanium Source Powder

The initial titanium powder has a spongy shape. Its size is about 2 mm.
Titanium

Powder titanium
